Geophysical Water Well Logging Equipment Borehole Well Logger

Name: Geophysical Water Well Logging Equipment Borehole Well Logger
Brand: Gold
Price: 10000 USD

Geophysical Water Well Logging Equipment Borehole Well Logger Manufactures

Brand Name : Gold

Model Number : GDQ-2D

Place of Origin : Chongqing, China

MOQ : 1 set

Price : 10000-30000 dollar/ 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product name : Borehole Logging Equipment

Usage : Carry probes

Application : Deep Well Detect

Power supply : AC 220V 50Hz

Power : Electronic

Depth : 300-3000m

Cable material : Stainless steel

Probe : Various

Contact Now

Deep Water Well Logger Borehole Logging Equipment

Main Features

1.Integrated digital control logging system

2.Measurement multi parameters

3.Portable, convenient for mobile transportation.

4.Operating and maintenance is simple

The charateristics of probes

Almost all of the probes are φ40 and φ50mm, and the shape size of 1000 to 1500mm is 1000 to 1500mm. Probes are mostly made of stainless steel. The water resistance is 20-40MPa, and the temperature is 70-90 ° C. Special probe can withstand a water pressure of 60 mPa and the temperature of 120 ° C.

Applications

Coal Field Digital Integrated Logging

Hydrological Engineering Digital Integrated Logging

Solid Metal Ore Digital Integrated Logging

Other Minerals Digital Integrated Logging

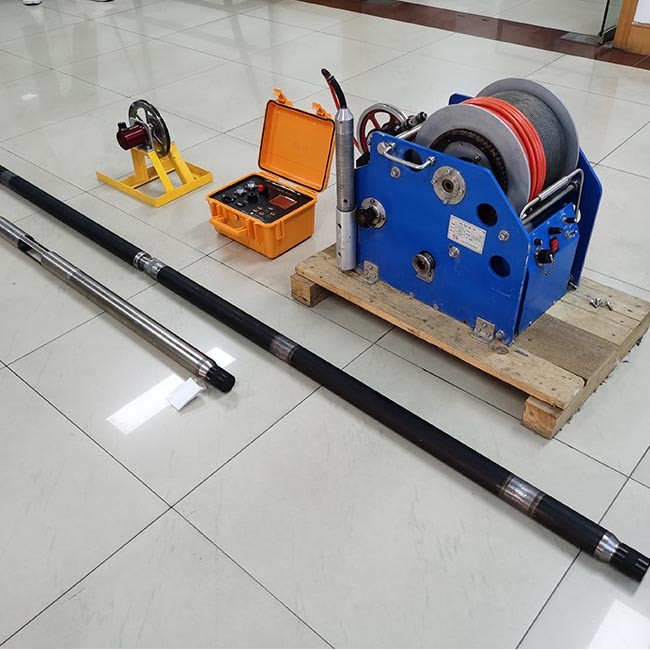

Product Image

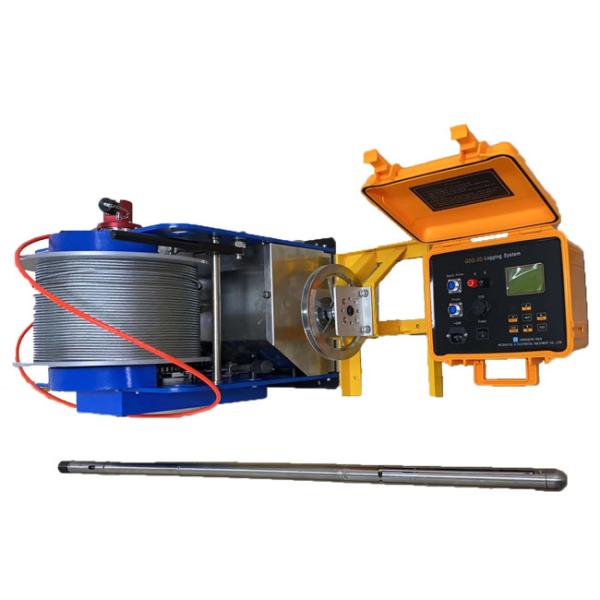

Geophysical Water Well Logging Equipment Borehole Well Logger

Technical Specification

Dip (inclination):	0° -- 50°	Accuracy:		±0.5°
Azimuth:	0° -- 360°	Accuracy:		±3°(typical @dip≥4°)
Resolution:	Azimuth:1°		Dip:0.1°
Endurance:	About 6 hours (Using DC Power)
Pressure:	250 bar
Dimensions:	Diameter Ø40 mm, Length 1230 mm, Weight 6 kg
Storage:	10 Projects with 99 shots each
Temperature:	-10°C -- +60°C
Power Supply:	220V AC input or use internal DC battery
