Deep Well Logging Geophysical Borehole Logging Equipment

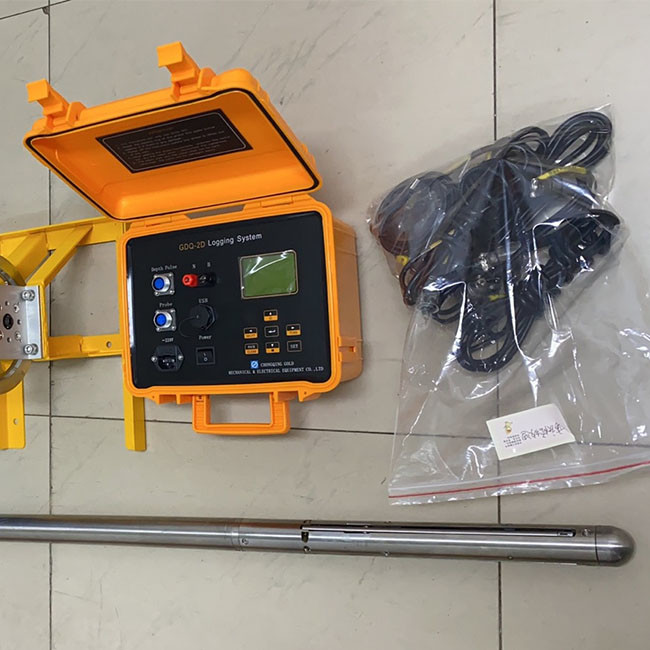

The GDQ-2D Logging System is specifically built for field work and can connect to many types of pipes and logs. Because this system has a lot of sophisticated technologies,it transforms the use of a single ground-based instrument controlling a single heavy logging probe into a single ground-based instrument controlling many types of logging probes, as well as deep measurement, power supply, and so on. The instrument is lightweight and simple to operate and maintain, and it may be coupled to a tube type that is aseismatic, temperature-resistant, moistureproof, and very reliable.

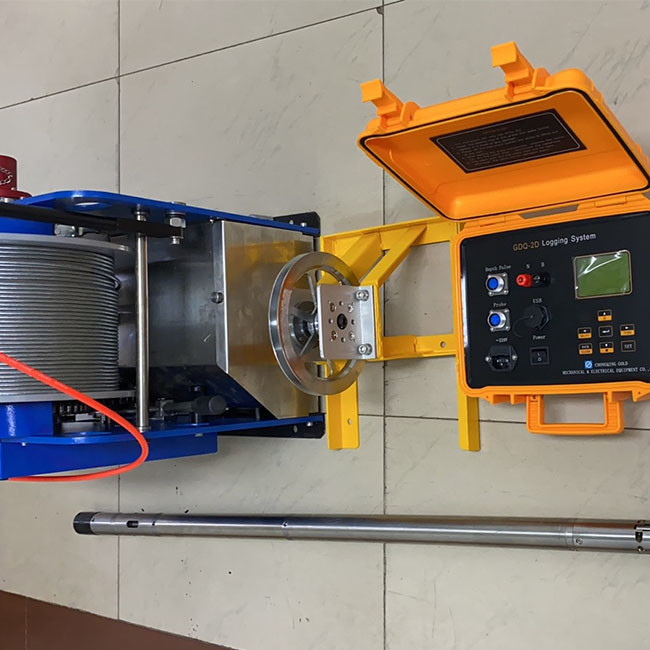

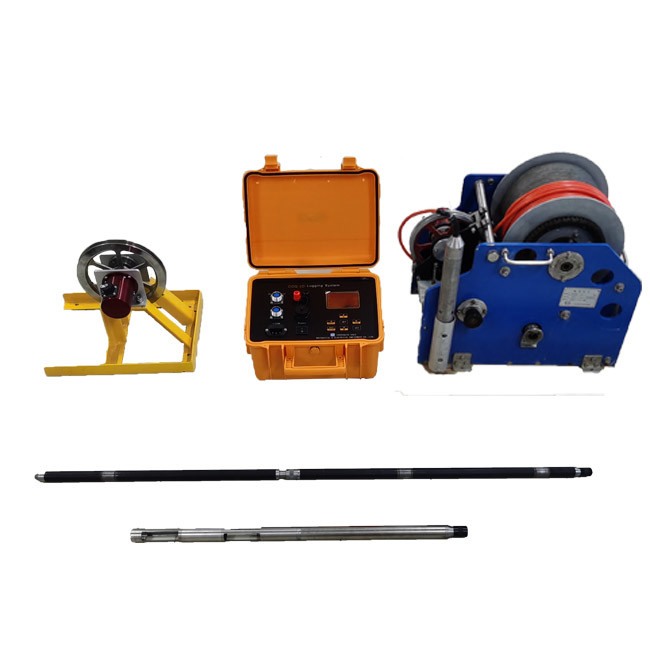

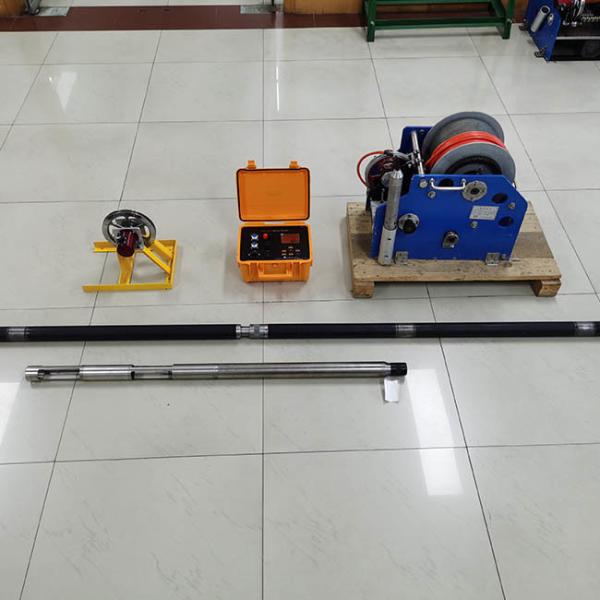

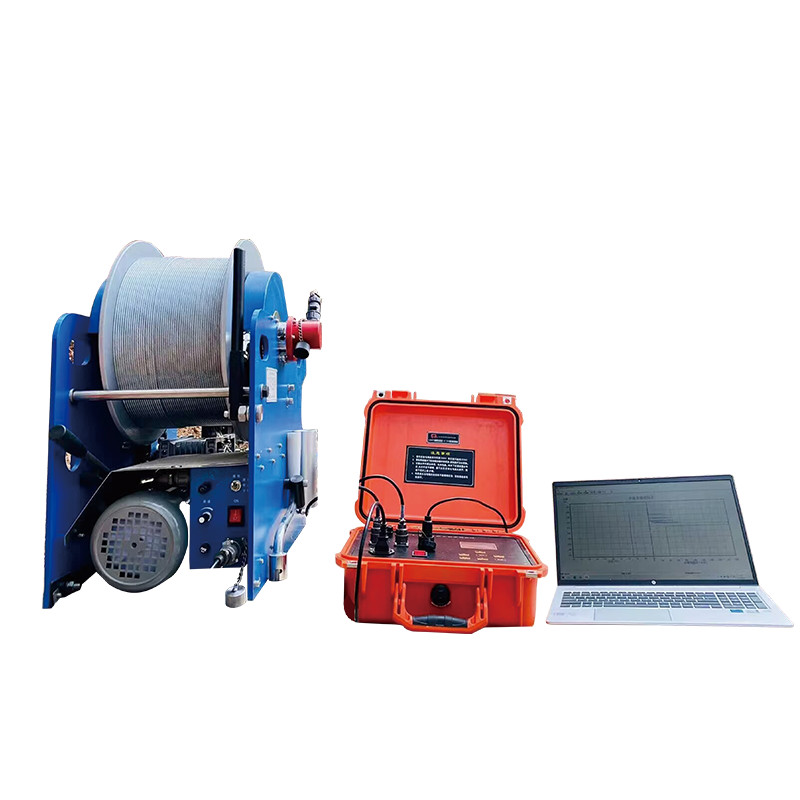

Deep well logging geophysical borehole logging equipment is composed of logger box, logging winch and logging probes. Acquire the geophysical data such as resistivity, SP, Gamma, Caliper, sonic and so on. The survey depth can be 0-3000M.
Applications
1.Oil&Gas Well Logging
2.Geothermal Well Logging
3.Construction Engineering Well Logging
4.Coal Field Digital Integrated Logging
5.Hydrological Engineering Digital Integrated Logging
6.Solid Metal Ore Digital Integrated Logging
7.Other Minerals Digital Integrated Logging
Borehole logging system, no matter hardware, software, downhole probes, surface equipment, signal measurement or signal transmission, standardized and modular design concepts are adopted. The benefits of standardization and modularity are that the product is very consistent, very maintainable, and very reliable. Easy to operate and maintain. Accessories are 100% universal and can be expanded at any time.
Technical Specification
| Dip (inclination): | 0° -- 50° | Accuracy: | ±0.5° |
| Azimuth: | 0° -- 360° | Accuracy: | ±3°(typical @dip≥4°) |
| Resolution: | Azimuth:1° | Dip:0.1° |
| Endurance: | About 6 hours (Using DC Power) |
| Pressure: | 250 bar |
| Dimensions: | Diameter Ø40 mm, Length 1230 mm, Weight 6 kg |
| Storage: | 10 Projects with 99 shots each |
| Temperature: | -10°C -- +60°C |
| Power Supply: | 220V AC input or use internal DC battery |
Logging Probes
| No. | Probe name |
| 1 | M552 Combined sidewall probe |
| 2 | M451 Combined density probe |
| 3 | S524-1S Acoustic wave probe |
| 4 | CZ521- Combined Natural Gamma probe |
| 5 | W422Temperature and liquid resistivity combined probe |
| 6 | CX3019 SP, inclination, natural gamma combined probe |
| 7 | ZH-1 Natural gamma, inclination, temperature, acoustic wave combined probe |
| 8 | ZH-2 Natural gamma, inclination, Three direction laterolog, Temperature and liquid resistivity combined probe |
| 9 | JSC-1 Digital inclination probe |
| 10 | S524 Acoustic wave probe |
| 11 | H411 Magnetic susceptibility probe |
| 12 | X411 Three-lateral direction resistivity laterolog probe |
| 13 | J411 Caliper probe |
| 14 | LLY-1Flow probe |
| 15 | R411 Natural gamma probe |
| 16 | JD-1Conventional resistivity log probe |
| 17 | JDS-1 Brush electrode probe |
| 18 | JD-3 Soft-elctrode probe |
