Downhole Seismic Instruments Seismograph 3 Channels Borehole Geophone

Name: Downhole Seismic Instruments Seismograph 3 Channels Borehole Geophone
Brand: Gold
Price: 1 USD

Downhole Seismic Instruments Seismograph 3 Channels Borehole Geophone Manufactures

Brand Name : Gold

Model Number : WZG-24C

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Ngotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : Engineering Seismograph

Channels : 24

OEM/ODM : Acceptable

Depth : 50m to 100m

Application : borehole seismic receiver

Frequency : 38hz

Material : Steel

Diameter : 50/40mm

Arm : Arm open geophone

Contact Now

Downhole Survey Seismograph With 3 Channels Borehole Geophone

Downhole Survey Seismograph is a geophysical method based on borehole seismic wave acquisition. It is mainly based on vertical seismic profiling (VSP). The seismic data in the well has the advantages of high signal-to-noise ratio, wide frequency band, rich wave field, and obvious seismic wave dynamics and kinematics characteristics.

With the continuous deepening of oil and gas reservoir exploration and development research, borehole seismic technology has received more and more attention as a high-resolution seismic exploration method, because it combines the characteristics of seismic and logging, surface and well data , thus becoming a bridge and link connecting multidisciplinary oil and gas exploration methods

Specification

Channel	6/12/24/48
Sample stations	1024, 2048, 4096, 8192, 16384 Micro-seismic survey, 1M sampling, several notches
Sampling frequency	10μs, 25μs, 50μs, 100μs, 200μs, 500μs, 1ms, 2ms, 5ms, 10ms, 20ms
Micro-seismic survey	1ms~200ms, selectable A/D converter: 24-bit
Signal stack and amplification	32 bit
Dynamic range	144dB
Frequency pass bands	0.1Hz~4000Hz
Noise	1μV(full-frequency)
Amplitude consistency	±0.2%
Phase consistency	±0.01ms

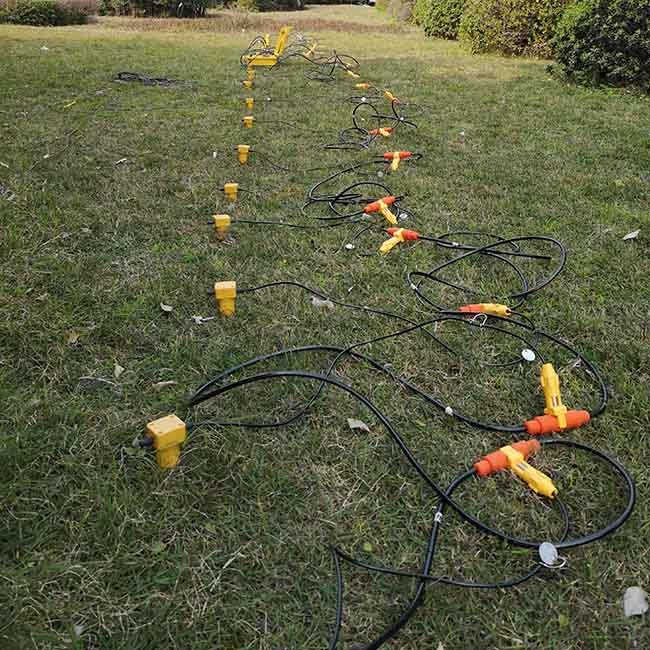

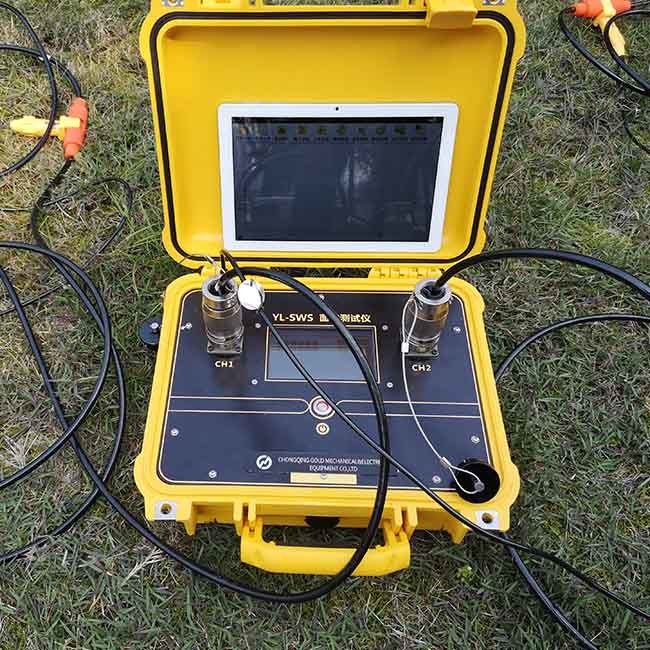

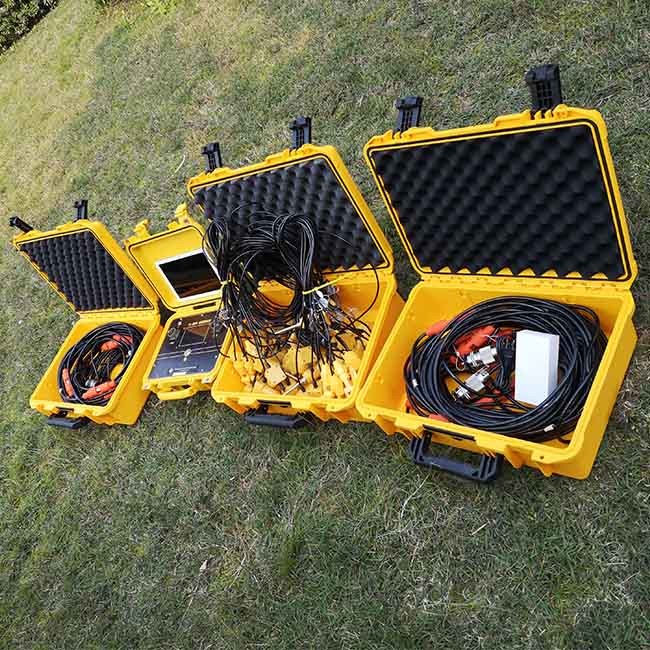

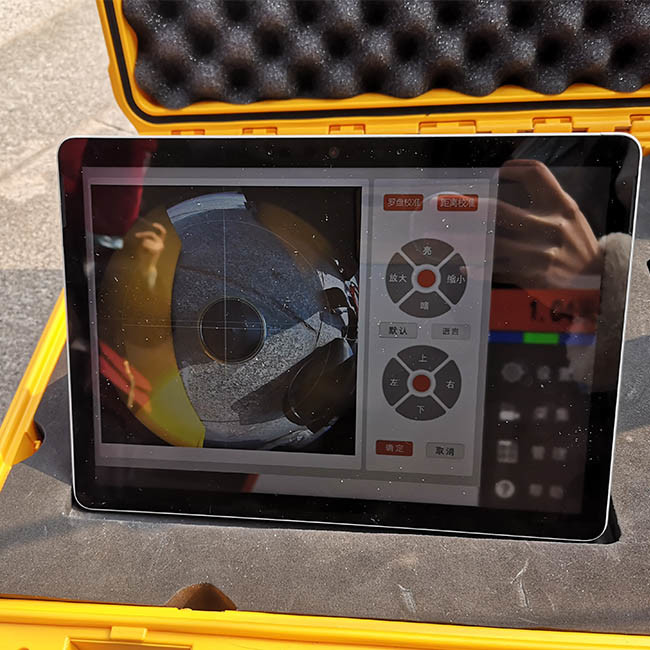

Photo of product

Downhole Seismic Instruments Seismograph 3 Channels Borehole Geophone
