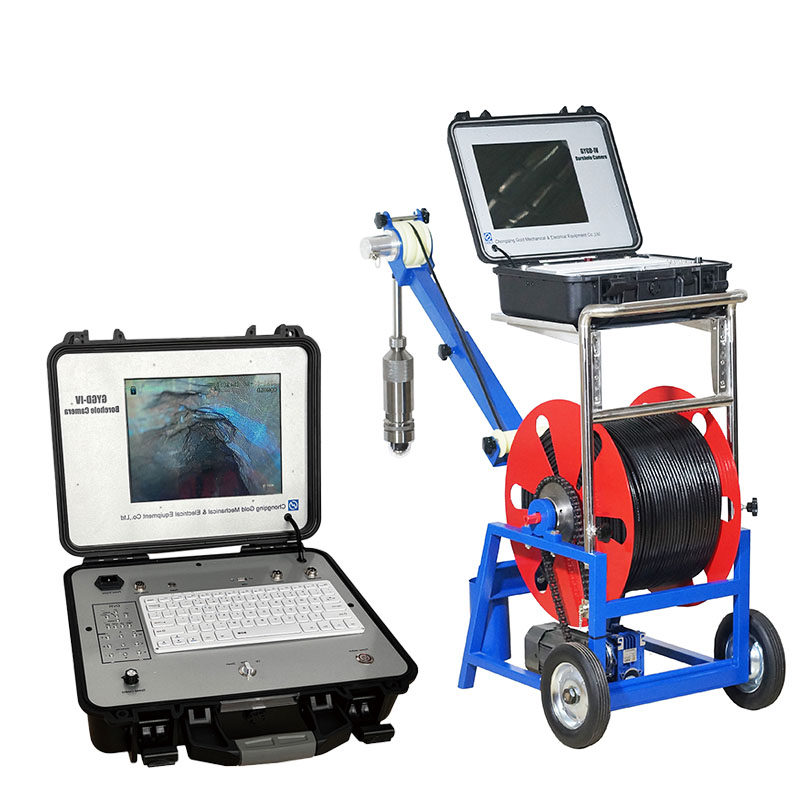

1000 Lux Borehole Inspection Camera for deep wells Deep Well Explorer Inspection System
Excellent Inspection Camera for Deep Wells GYGD-IV with Full View Head that allows you to have a panoramic and 360º view at any position. The head is IP68 Waterproof with maual focus and light adjustable.
The monitor is very optimized and comfortable, with HD resolution to view recordings, which support keyword input diagnosis or marks on video in real time, to ensure post view and quickly output inspection report at office.
Technical Specification
| No. | Name | Dimension | Specification |
| 1 | Probe | | (1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-20Mpa (can be under 2000m deep water) (4) Light: 6-9 LED Lights |

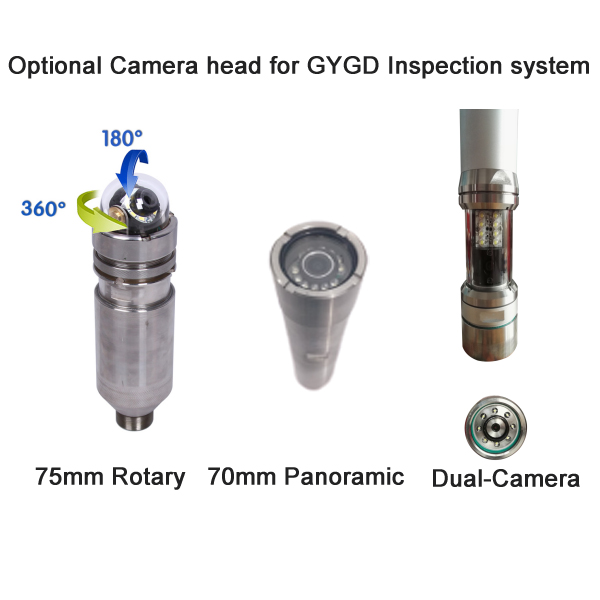

| 2 | Camera | | (1) Inductor 1/3'' CCD, (2) Image definition is HD 850 TVL (3 Watertight (4) Camera Type: Panoramic/Rotation |

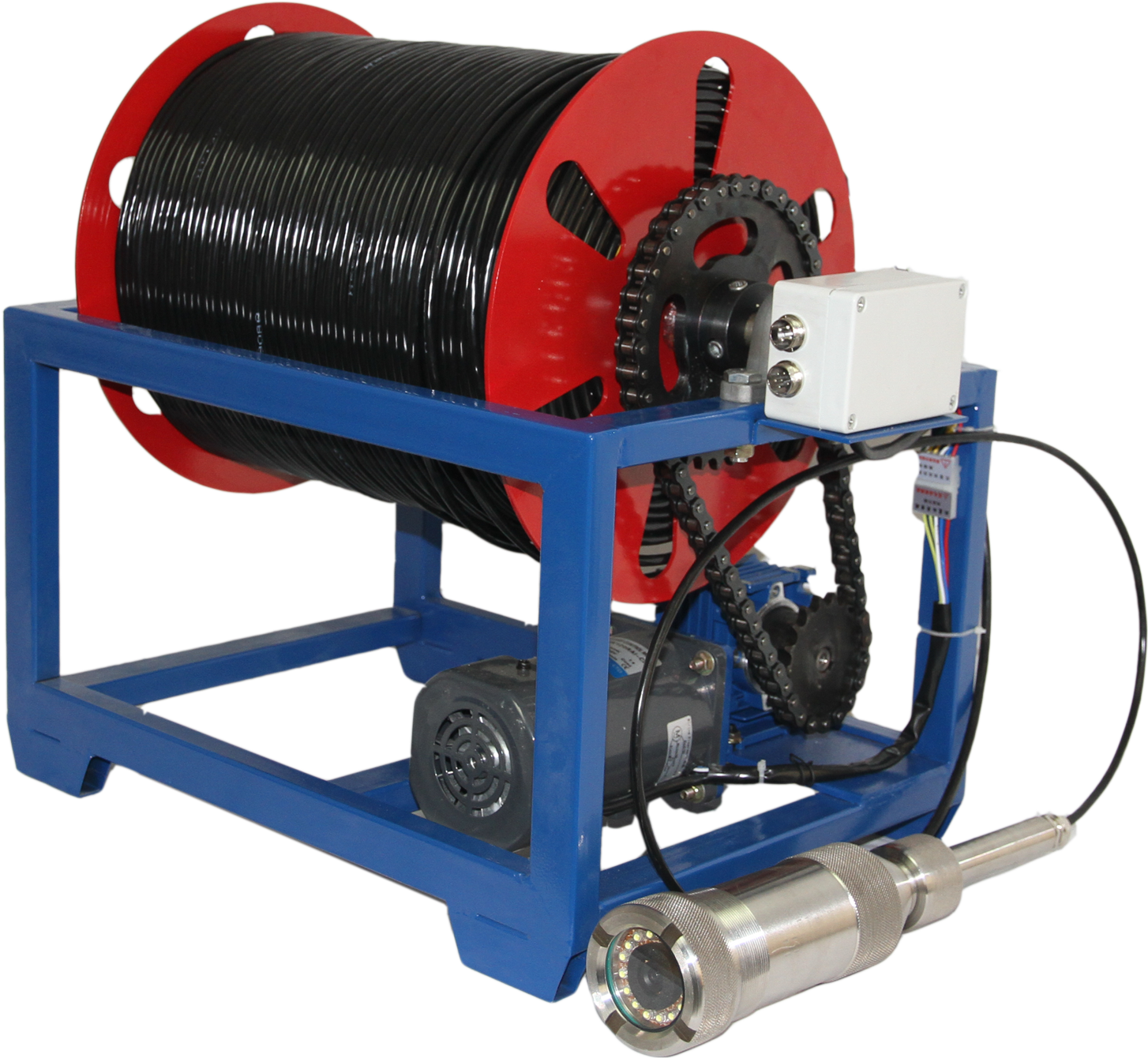

| 3 | Professional Cable | 0-2000m(optional) | (1) Tension is 150kg, (2) Destroy tension is 260kg |
| 4 | Control Machine | | (1) 12V/220V/380V optional (2) LCD display (3) Aircraft grade aluminum alloy material |
| 5 | Wellhead Pulley | | Depth sensor |
Why need a camera for deep wells inspection?
Deep Wells inspection is a method that uses a submersible video camera to inspect the interior of a well. The camera is introduced into the well, and a videographic record of vertical and lateral images is obtained. This record provides the necessary perspectives to carry out a diagnosis of the well and make the corresponding decisions regarding well maintenance needs.
What's applicaiton about deep wells inspection?
Evaluation of the current state of the well assembly.
Recognition of obstructions or damage that are affecting the efficiency of the well.
Periodic inspection to determine cleaning and repair work.
Quality control of executed works.
Recovery of lost tools or objects.
Aquifer level monitoring.
