Single-Core Pumping Perforating Cable Logging Cable for Oilfield Exploration

Brand Name : Gold

Model Number : GD

Place of Origin : Chongqing, China

MOQ : 1 set

Price : 10000-30000 dollar/ 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : Geophysical Well Logging Cable

Copper Construction : 19×0.26 mm

Insulation : 0.35 mm

Protection : 0.32 mm

Cable Diameter : 5.60 mm±0.10 mm

Cable Weight in Air : 145 kg/km

Temp Rating : 232 ℃

Cable Breaking Strength : 25 kN

Contact Now

Single-Core Pumping Perforating Cable Logging Cable for Oilfield Exploration

Introducing the Single-Core Pumping Perforating Cable: The Downhole Dynamo!

When it comes to pumping perforation operations, the Single-Core Pumping Perforating Cable is the ultimate game-changer. Designed to handle high torque, extreme temperatures, and dynamic tension, this cable is your go-to solution for seamless downhole operations. Whether you're working in vertical wells or tackling ultra-deep projects, this cable delivers unmatched performance and reliability. Let’s explore why this cable is a must-have for your oil and gas toolkit!

Key Features That Will Blow Your Mind

  1. Exceptional Mechanical Strength:

    • Breaking Strength: 55 kN (12,300 lbs)

    • Bending Diameter: 450 mm (18 inches)

    • Stretch Coefficient: 1.35 m/km/5kN
      These specs ensure the cable can handle the rigors of deep well operations without compromising performance.

  2. Superior Electrical Performance:

    • Voltage Rating: 1500 VDC

    • Insulation Resistance: 15,000 MΩ-km

    • Capacitance: 190 pF/m
      These features guarantee reliable signal transmission and minimal interference, even in challenging environments.

  3. High-Temperature Endurance:
    With a temperature rating of 232°C (450°F), this cable is perfect for high-temperature applications, ensuring consistent performance in extreme heat.

  4. Lightweight Yet Durable:
    Weighing just 281 kg/km (189 lbs/ft), this cable is easy to handle without sacrificing strength or durability.

Parameter

Physical
Cable Diameter 8.0 mm±0.10 mm
Cable Weight in Air 281 kg/km
Temp Rating 232 ℃
Mechanical
Cable Breaking Strength 55 kN
Minimum Shave Diameter 450 mm
Cable Stretch Coefficient 1.35 m/km/5kN
Electrical
Voltage Rating 1500 VDC
Insulation Resistance 15000 MΩ·km
Resistance Typical 9.2 Ω/km
Capacitance @ 1 kHz 190 pf/m

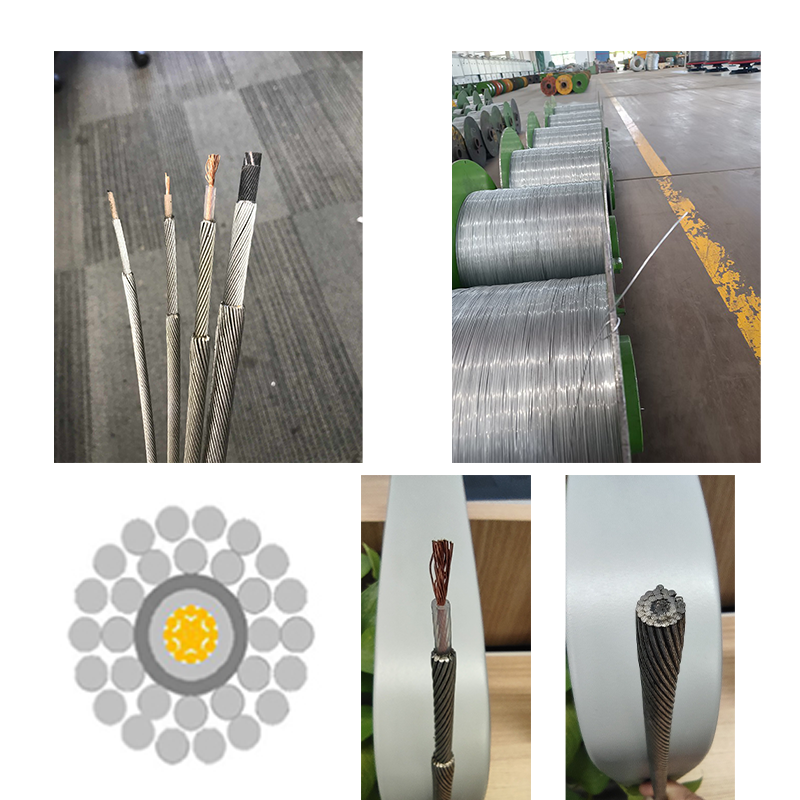

Product Photo

Single-Core Pumping Perforating Cable Logging Cable for Oilfield ExplorationSingle-Core Pumping Perforating Cable Logging Cable for Oilfield ExplorationSingle-Core Pumping Perforating Cable Logging Cable for Oilfield ExplorationSingle-Core Pumping Perforating Cable Logging Cable for Oilfield Exploration
